Features:
Supports communication over 4G LTE networks with fallback to 2G GSM.

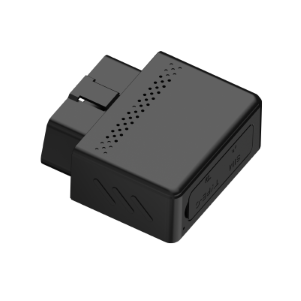

Just plug the device into the OBDII socket—no professional installation needed.
Dual positioning systems guarantee precise location tracking on the cloud platform.
Get alerts whenever any of the four dangerous driving behaviors are detected.A discreet microphone enables remote monitoring and recording of surrounding ambient sounds.
Receive instant alerts for unusual events like vehicle movement, speeding, and geo-fence entry or exit.
| GNSS | |
| Positioning system | GPS/BDS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165 dBm |
| Acquisition sensitivity | -148 dBm (cold) /-163 dBm (hot) |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat 1 + GSM |
| Frequency | LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B34/B38/B39/B40/B41 GSM: 850/900//1800/1900MHz |
| Power | |
| Battery | 50mAh industrial-grade LiCo battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green) |
| Connector | OBDII port |
| SIM | Nano-SIM |
| USB | 1 x USB Type-C for configuration |
| Data storage | 16+16MB |
| Physical specification | |
| Dimensions | 51.0 x 50.0 x 22.0mm |
| Weight | 42g |
| Operating environment | |
| Operating temperature | -20°C to 70°C |
| Operating humidity | 5%～95%, non-condensing |
| Feature | |
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer |
| Ignition detection | External Power Voltage |
| Scenarios | Vehicle movement alert, Speeding alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
|
|
